Outdoor Waterproof IP65 Solar Powered Led Street Lights 12H For Street Road Lighting

Brand Name : VS

Model Number : VS-SSL-H

Certification : CE, CB, ROHS, AS Required

Place of Origin : Guangdong, China

MOQ : 20

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 36000pcs per Month

Delivery Time : 15-25 days

Packaging Details : ITEM:VS-SSL-H20 G.W/pc: 5.35kg/pc CTN SIZE: 545*410*115mm

Product name : Solar Powered Led Street Lights

Dis-charge Time : >10-12 Hours

Power : 200W/300W/400W/500W

Warranty : 2 Years

IP Rating : IP65

Work Mode : Light Control+Remote Control

Contact Now

200w 300w 400w 500w solar street light outdoor with remote control for garden split solar street light split solar street light

DELIVERY

1. Origin factory, production according to orders, no stock, MOQ 500pcs, production time around 20-30 days.
2. Sample order production time 7-15 days.

Outdoor Waterproof IP65 Solar Powered Led Street Lights 12H For Street Road Lighting

solar street light

PARAMETERs

Product Name	Split Solar Street Lights
Model NO.	VS-SSL-H20	VS-SSL-H30	VS-SSL-H40	VS-SSL-H50
Power	200W	300W	400W	500W
Battey	3.2V 22AH	3.2V 27.5AH	3.2V 33AH	3.2V 45AH
Solar Panel	Mono 5V 25W	Mono 5V 30W	Mono 5V 40W	Mono 5V 50W
Lumen	2000-2100lm	2400-2500lm	2900-3000lm	3500-3600lm
LED Type	SMD 5054*50pcs
Beam Angle	120°
CCT	Cold White
C.R.I	70-80Ra
Charge Time	4-6 hours
Lasting Time	10-16 hours
Install Height	3-4m	4-5m	5-6m	6-7m
Lighting Area	80-100㎡	120-140㎡	180-200㎡	200-250㎡
Working Mode	Intelligent Light Control + Time Control + Remote Control(Support Customize)
Installation	Wall mounted / Pole Mounted / Hoop Mounted (Accessories do not include hoops)
Materials/Color	High Quality Die-casting Aluminum Heat Sink + Glass / Sand Grey
Packing	Integrated regular packing
Panel Size	39037517mm	39045017mm	39059017mm	39073025mm
Warranty	2 Years

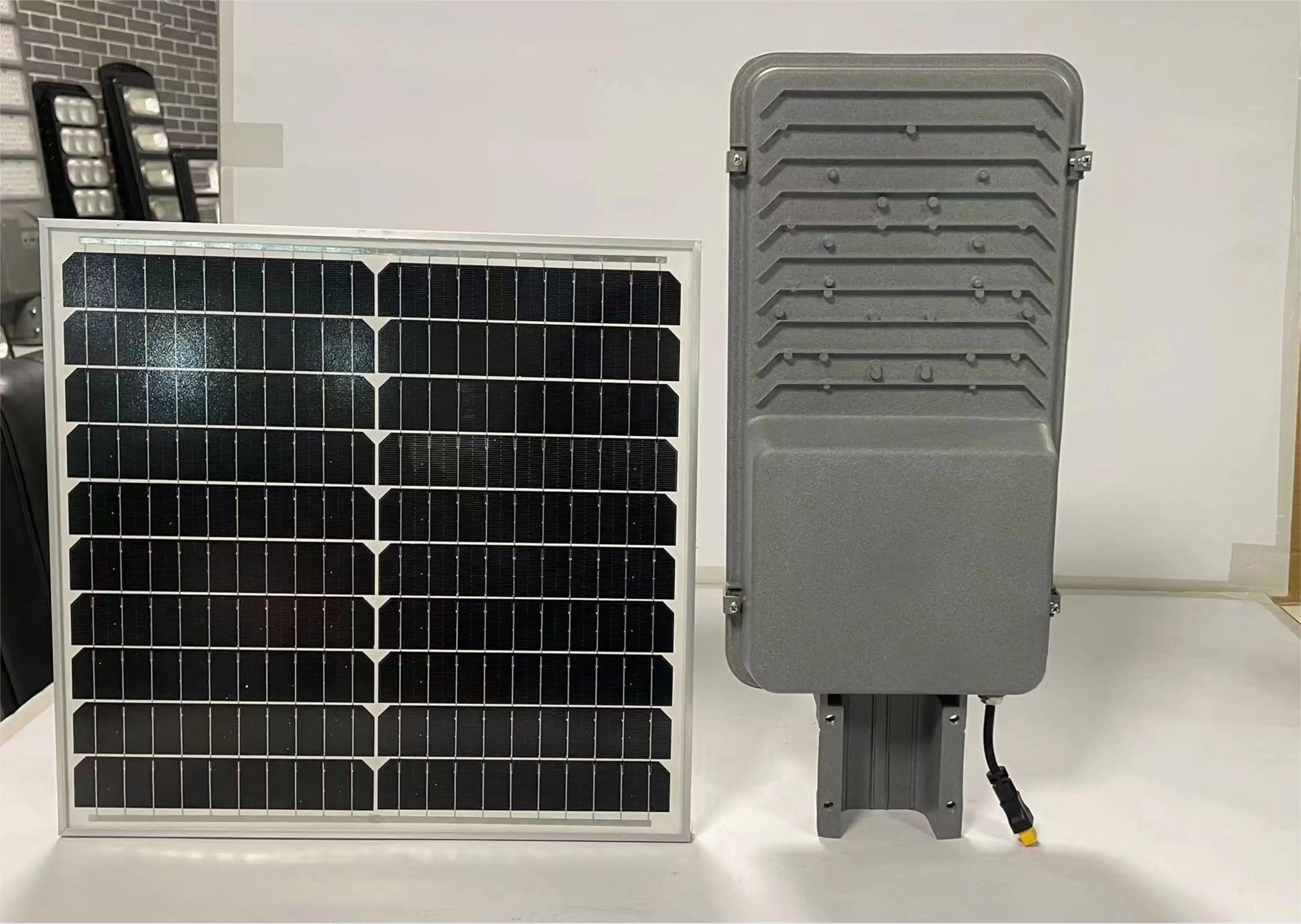

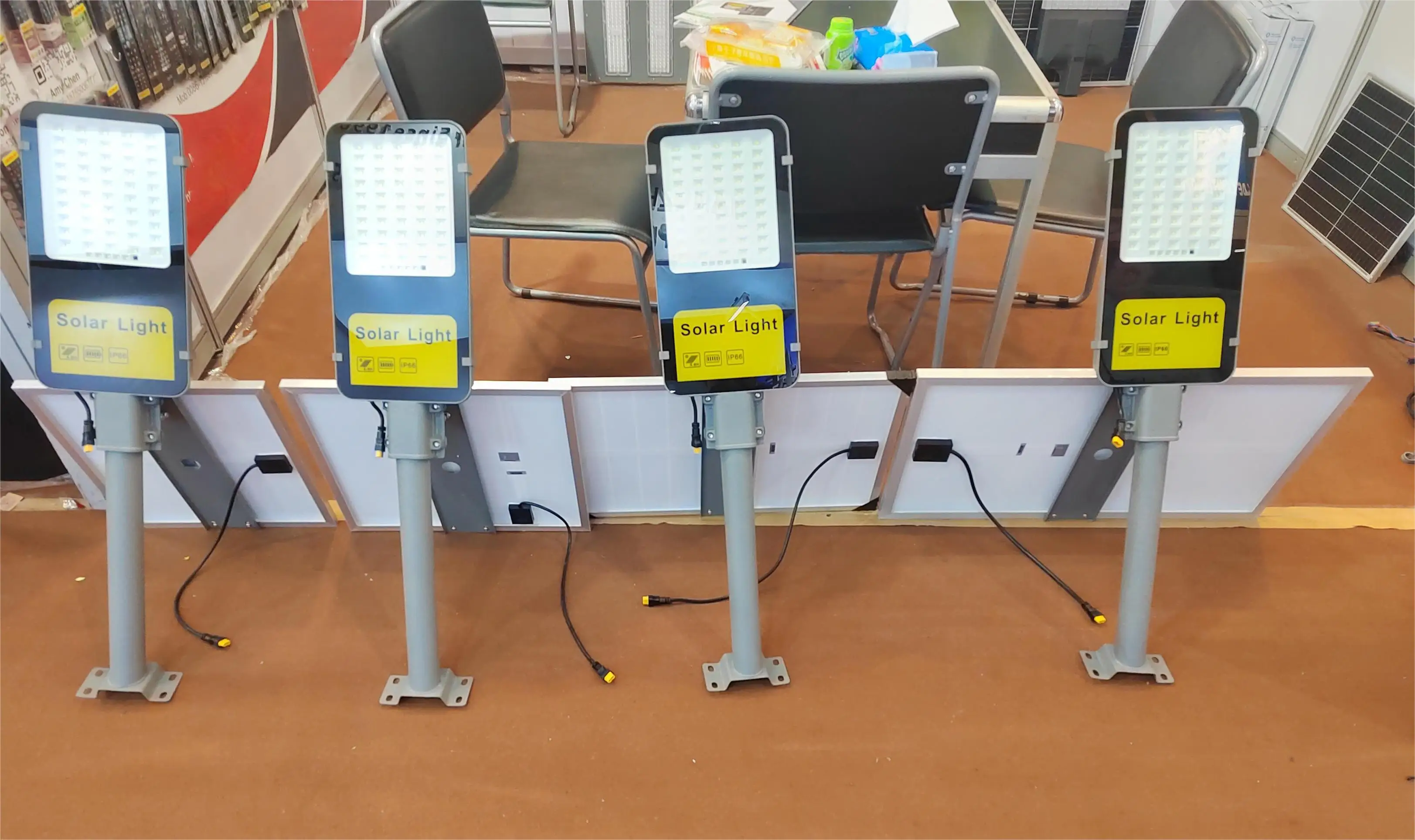

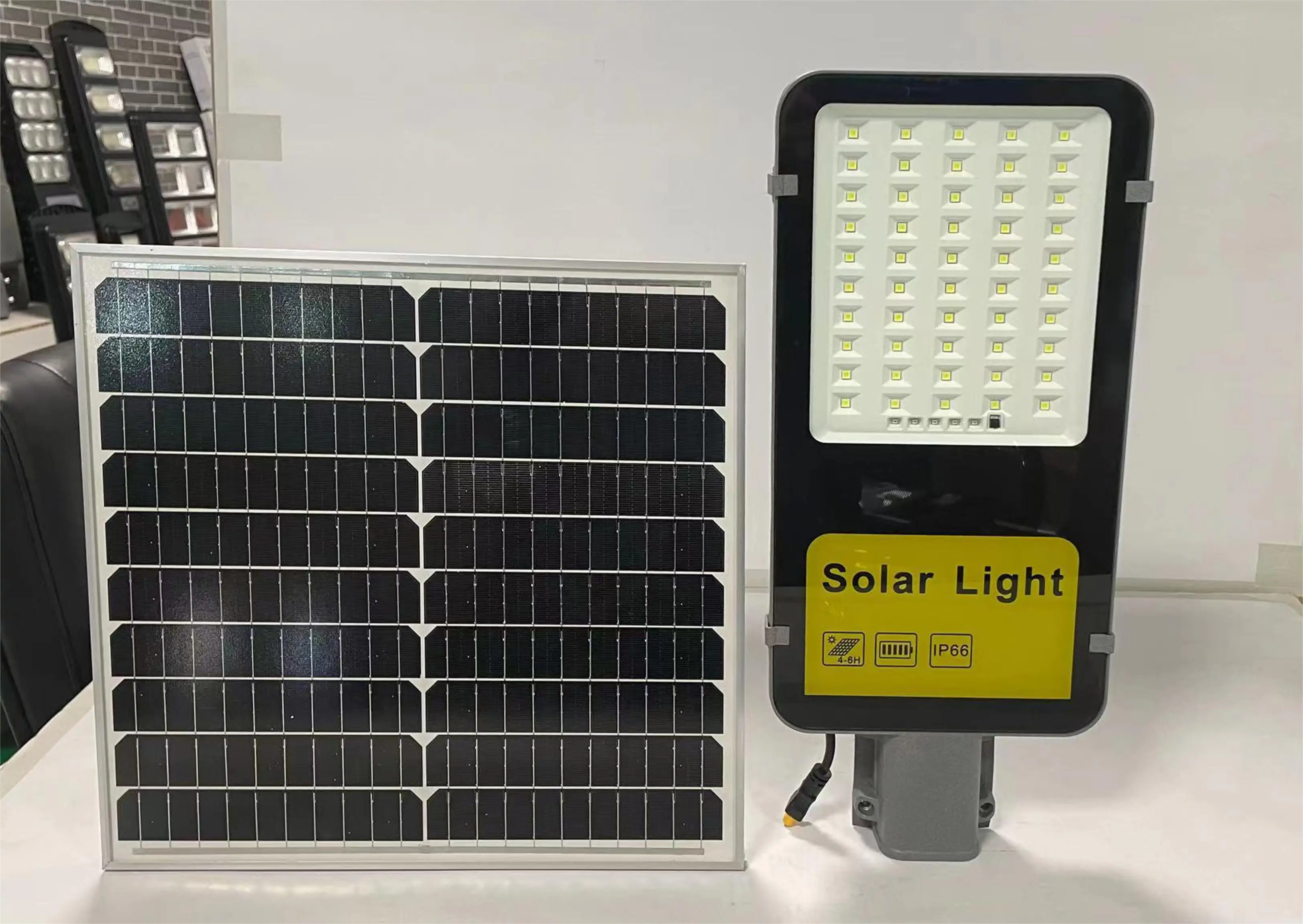

LIVE PHOTOs

street lightOUTDOOR LIGHT

SIZEs

Manual measurement, slight variation

Same lamp body size for the series Same 500mm bracket for the series

Solar panel for 200W Solar panel for 300W

Solar panel for 400W Solar panel for 500W

Installation

Wall mounted

Pole Mounted

Hoop Mounted

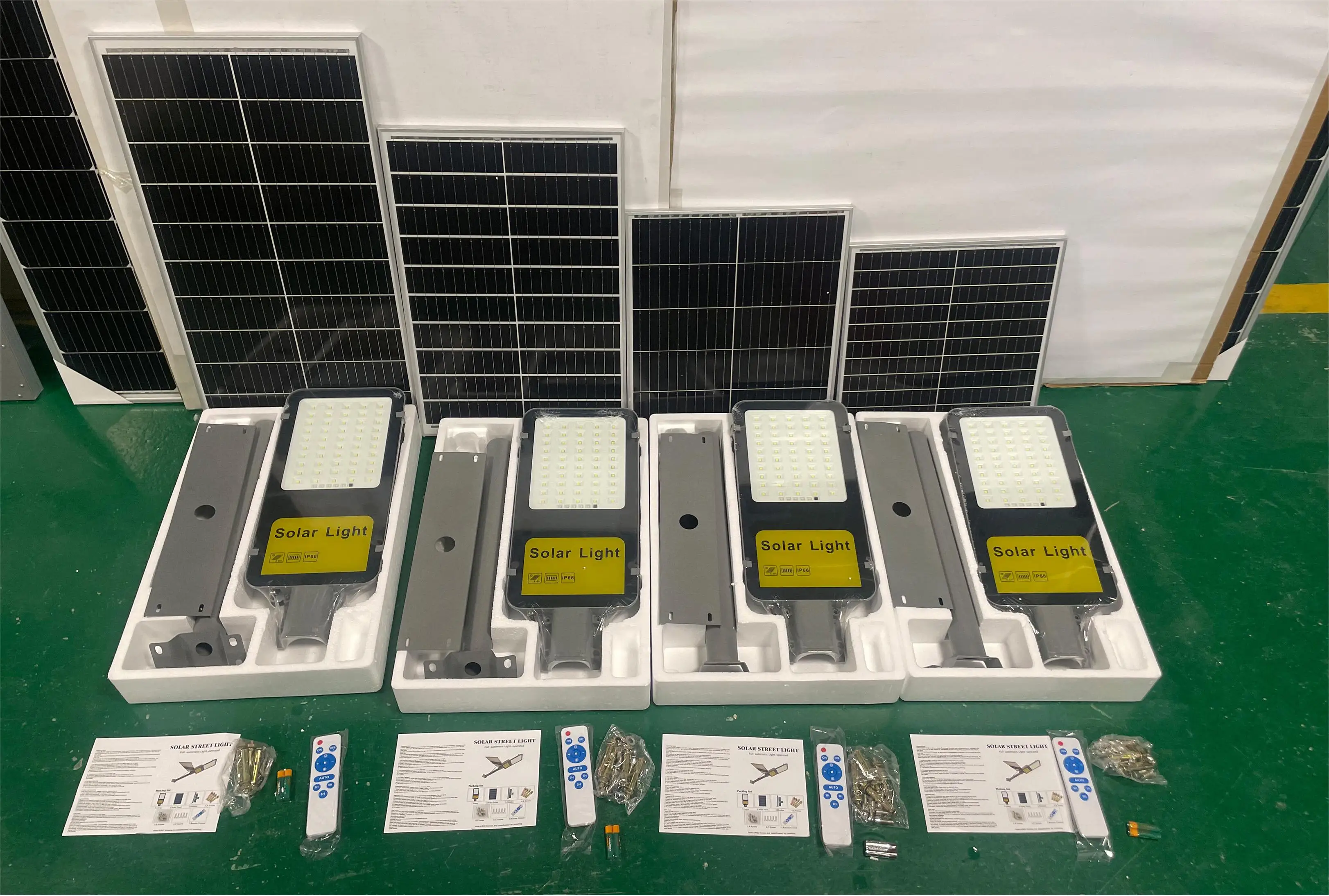

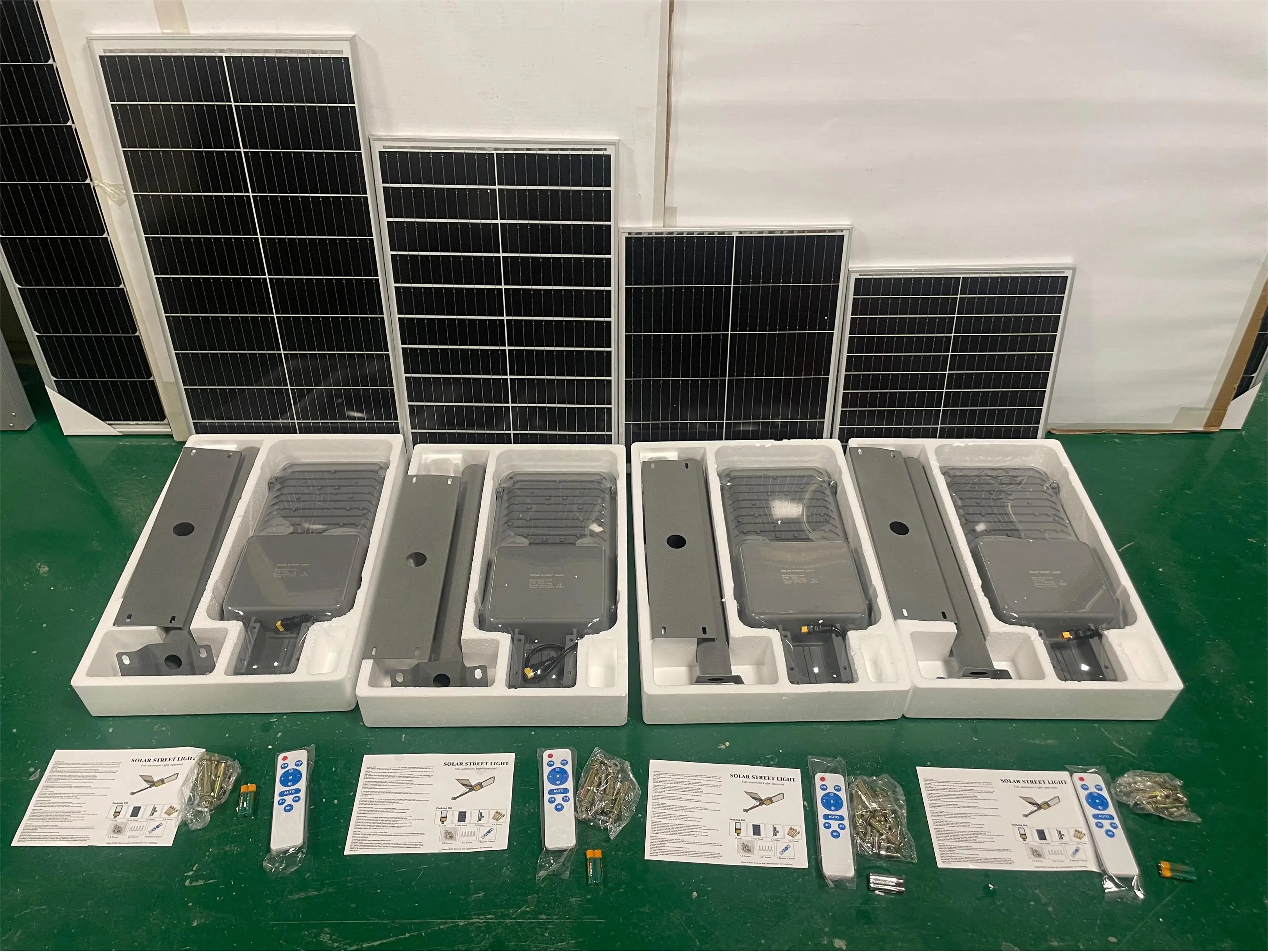

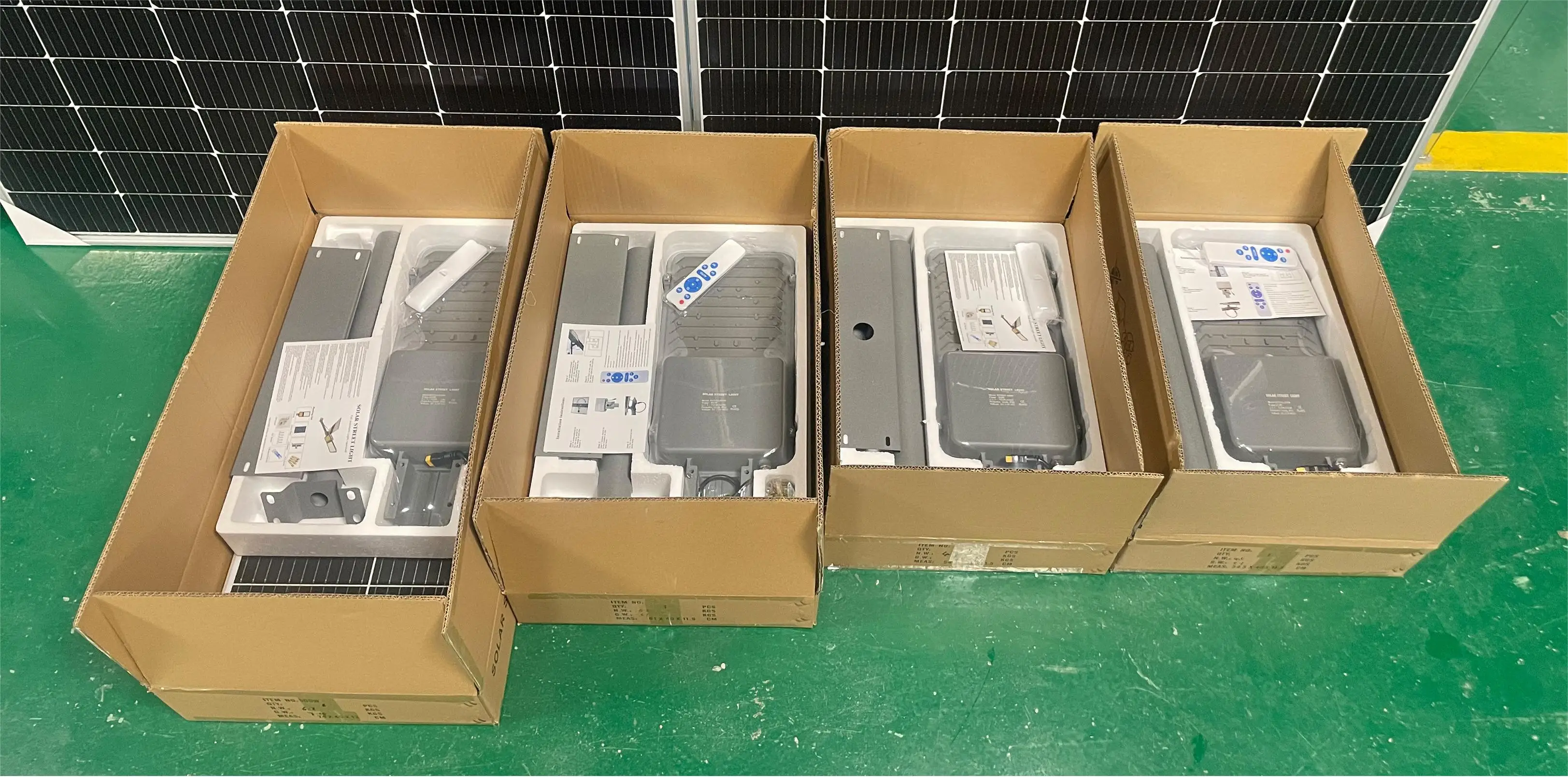

PACKING

Power	Carton Size	pc/ctn	G.W.	Packing
200W	545410115mm	1pc/ctn	5.35kg	Integrated regular packing
300W	545410115mm	1pc/ctn	5.70kg
400W	610400115mm	1pc/ctn	6.00kg
500W	740400120mm	1pc/ctn	5.35kg

INTELLI LIGHT CONTROL

AUTO CHARGE During the Day

At daytime, lamp auto charges

4-6 hours for full charge

also charge in rainy days

solar street light

AUTO LIGHT UP At Night

Inner photocell detects darkness

Lamp auto lights up

can last 3-5 rainy days after full charge

IP66 OUTDOOR LIGHTS

DETAILs

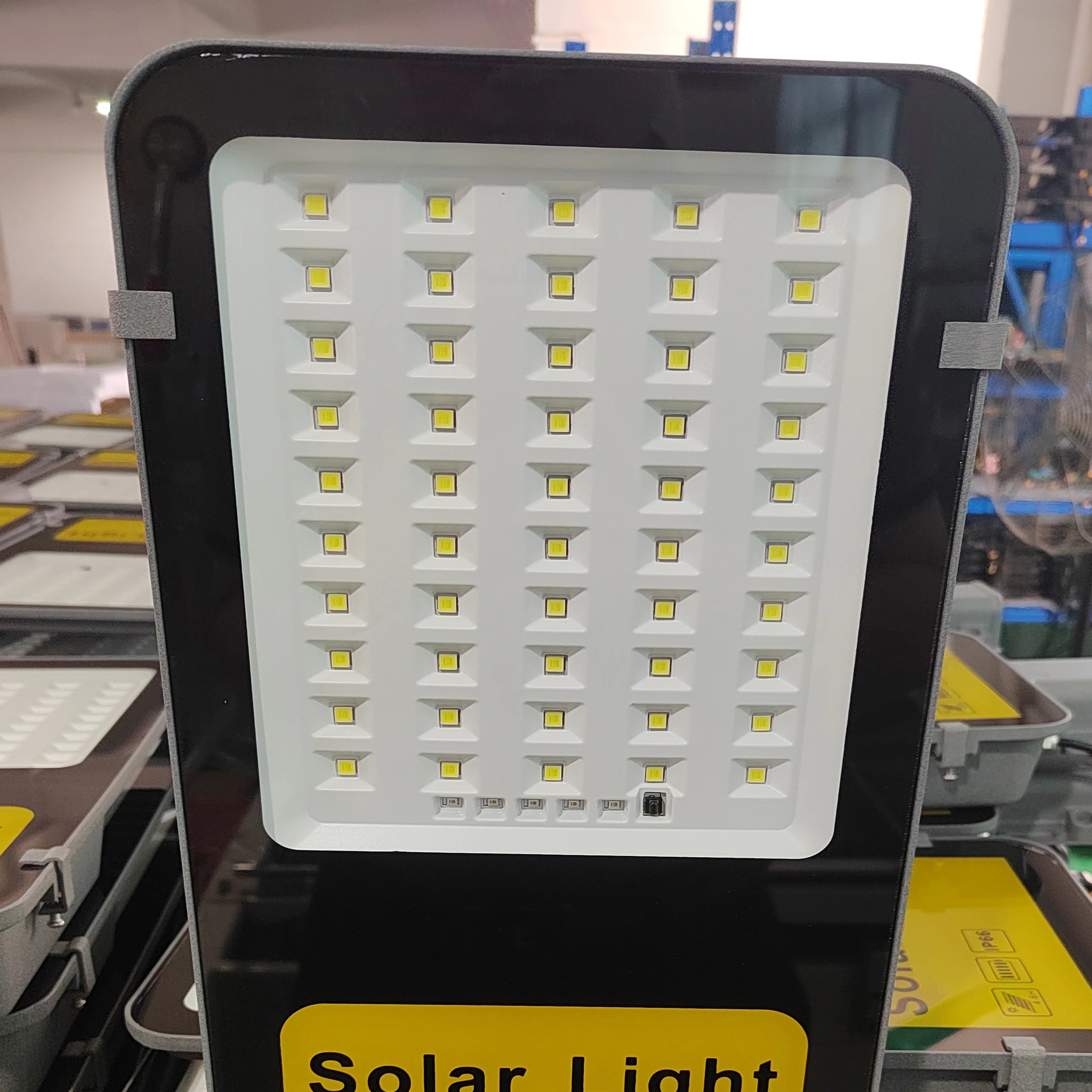

HIGH BRIGHTNESS LEDs

5054 LED Chips, high brightness, low light decay

solar street light

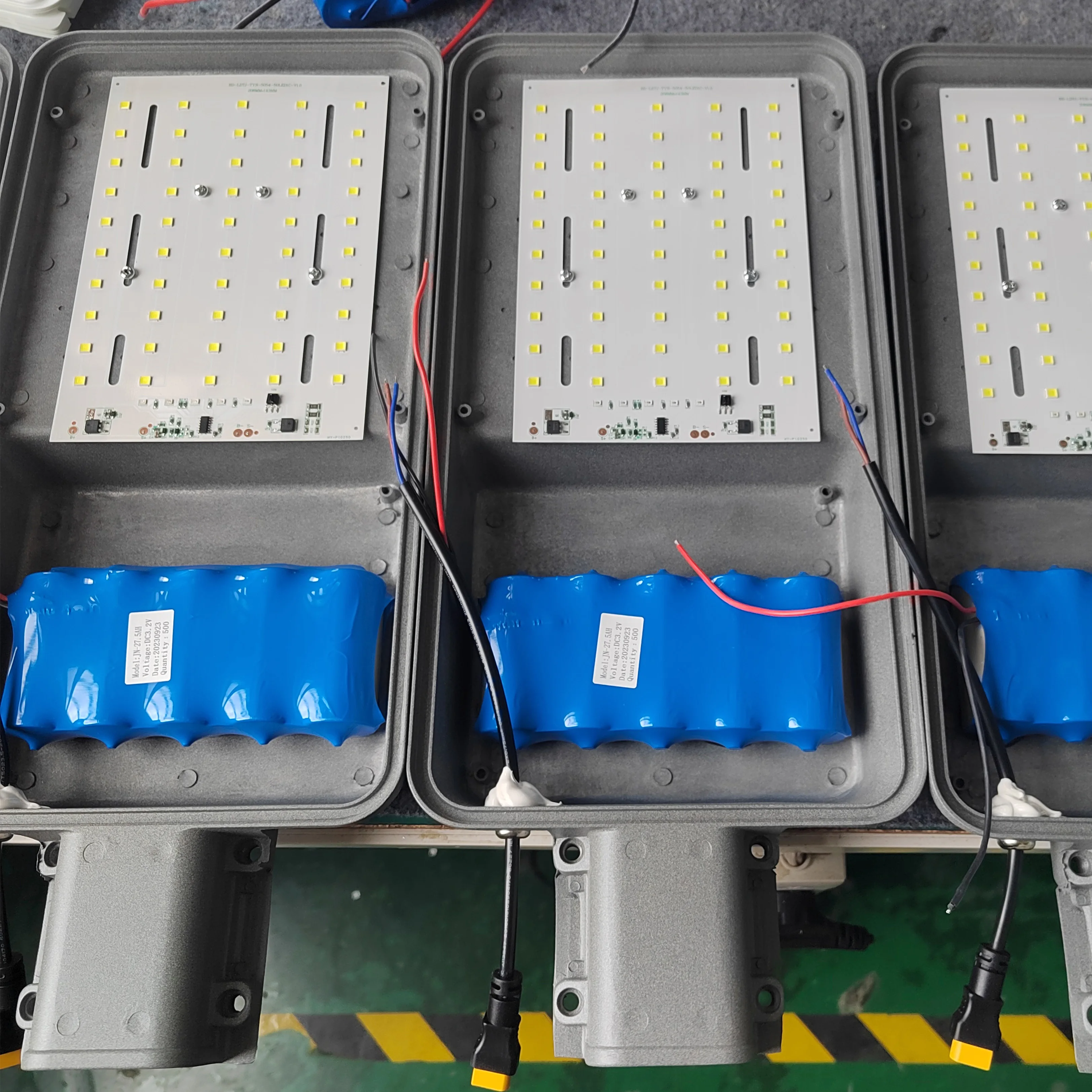

BRAND NEW LITHIUM BATTERY

Better qulity, more safe, more durable

solar street lamp

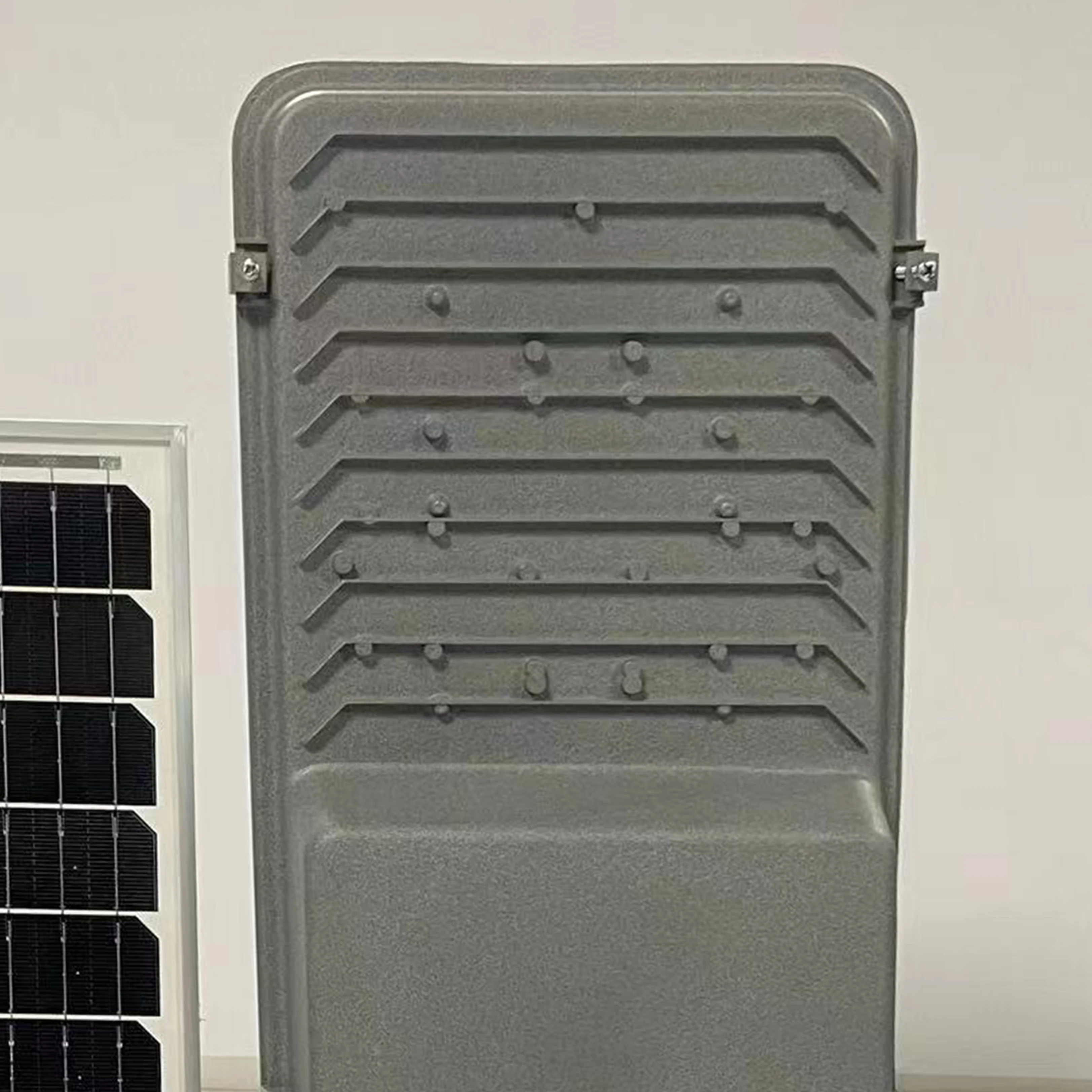

Dis-casting Aluminum, Better Heat Dissipation

For outdoor lighting, Hot weather resistance, More durable, Longer lifespan

PROJECT CASEs

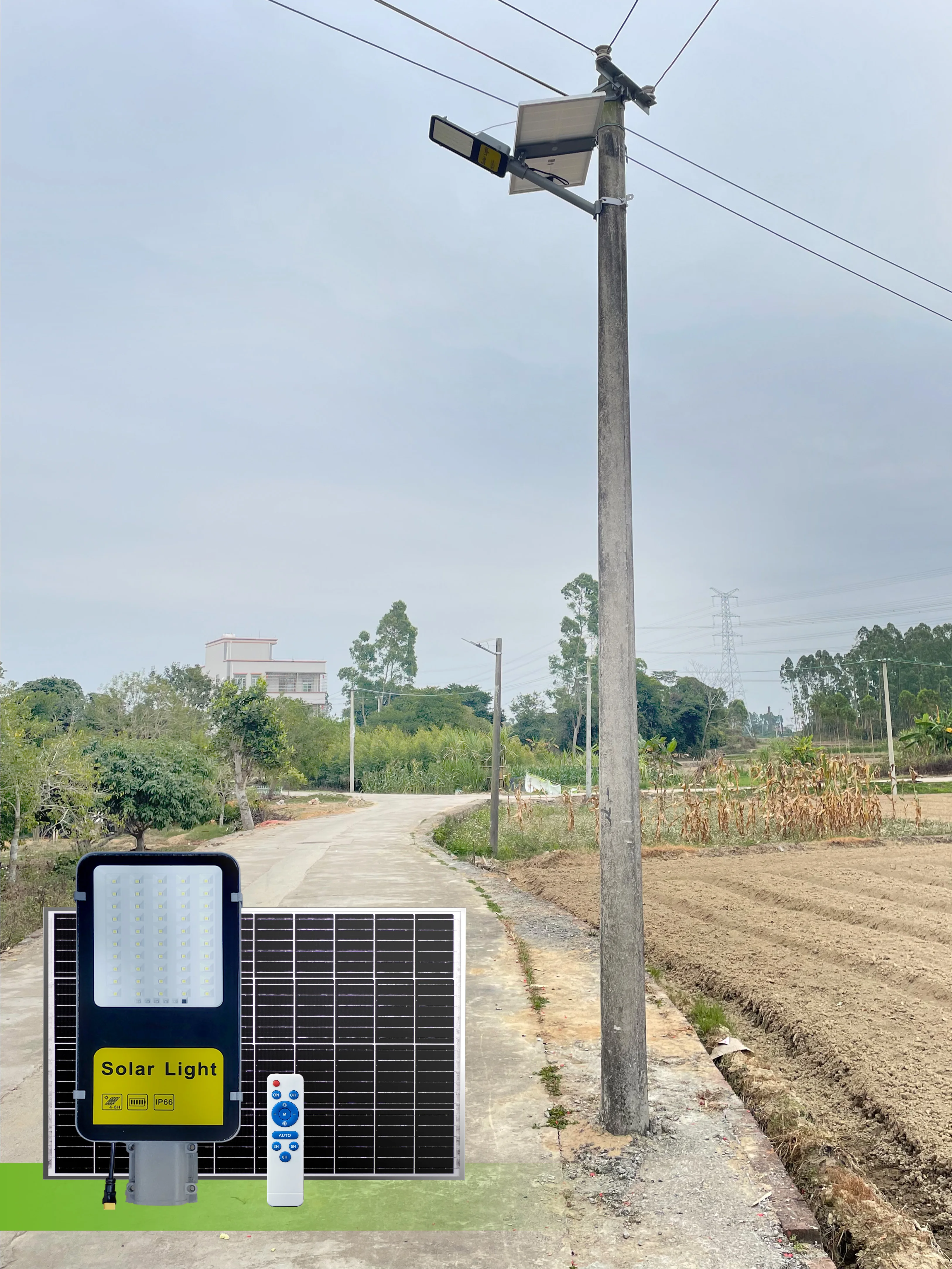

Rural Road Live Photo -Daytime
300W<Hoop Mounted>

road lighting

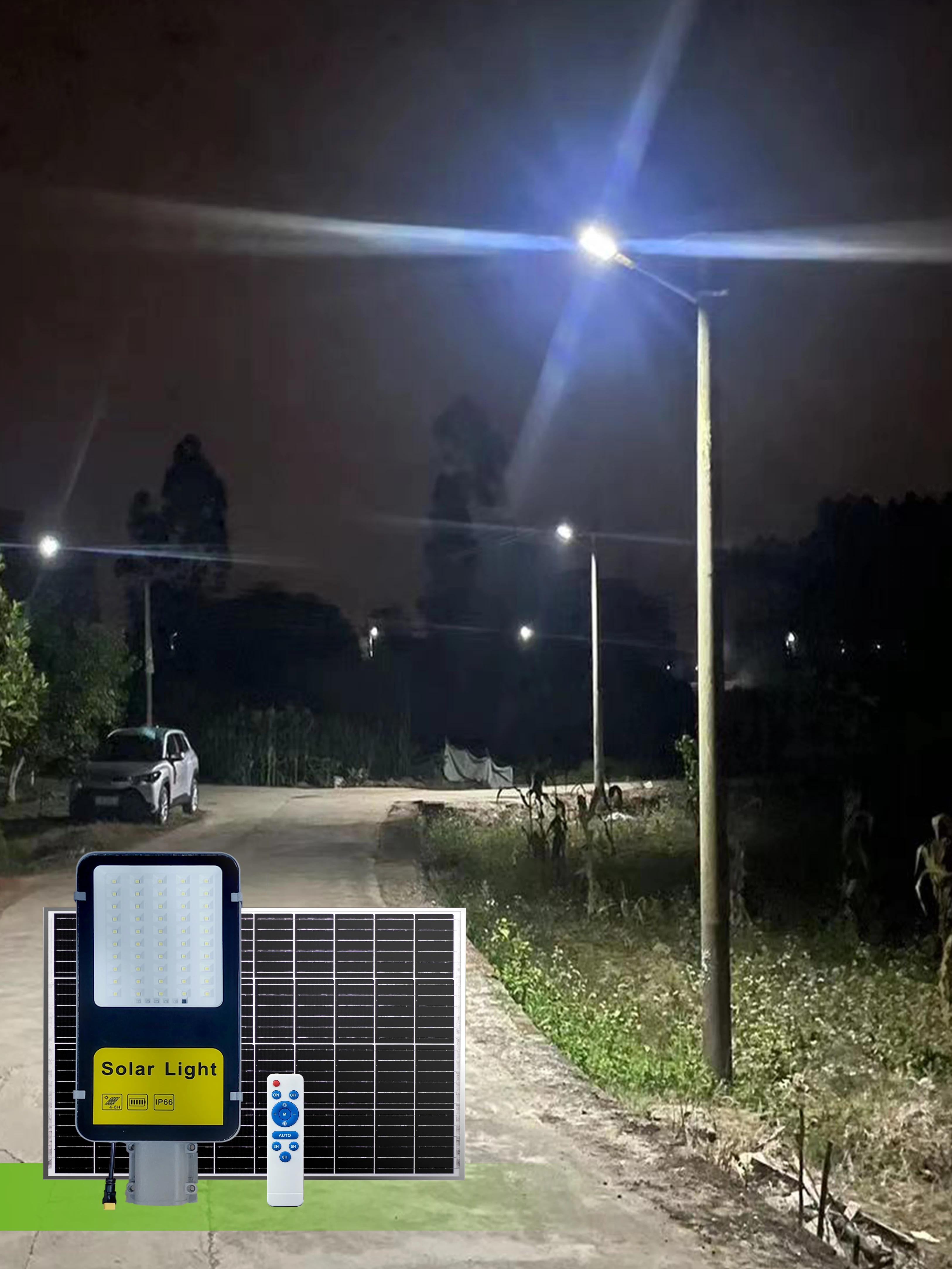

Rural Road Live Photo -Night

300W 4m Installation Height

solar street light

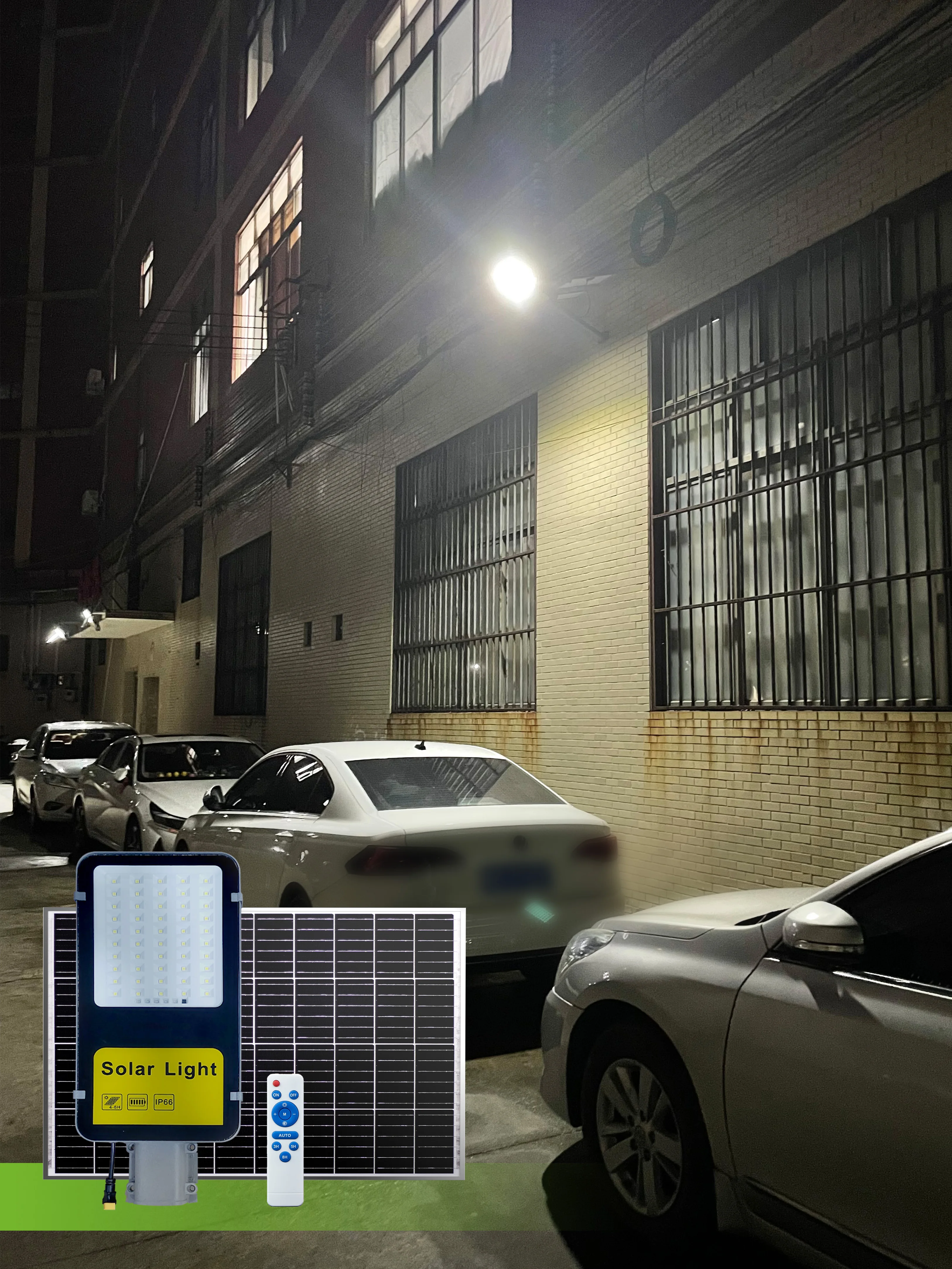

COMMUNITY PARKING LOT

300W Live photo

solar street light

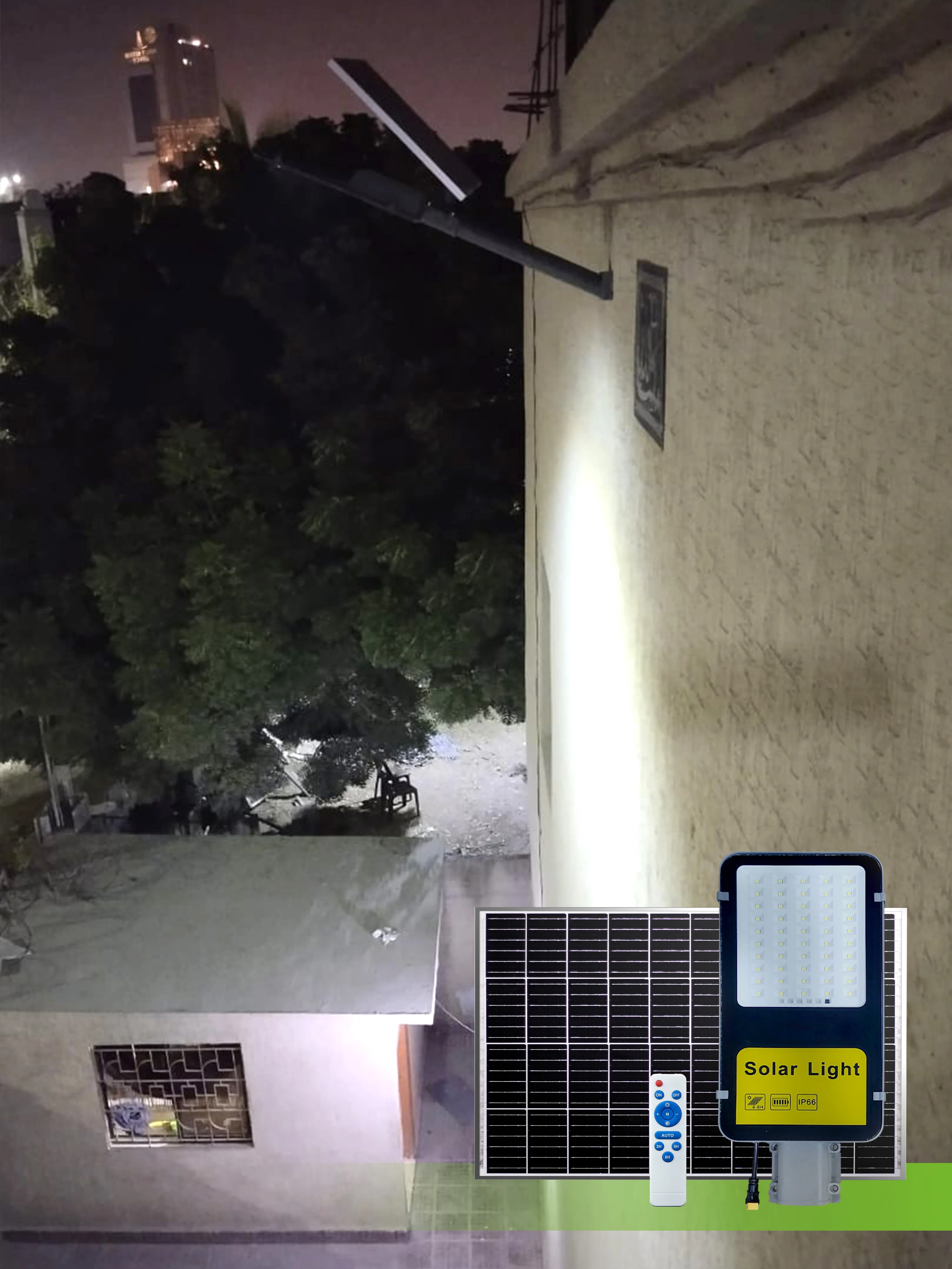

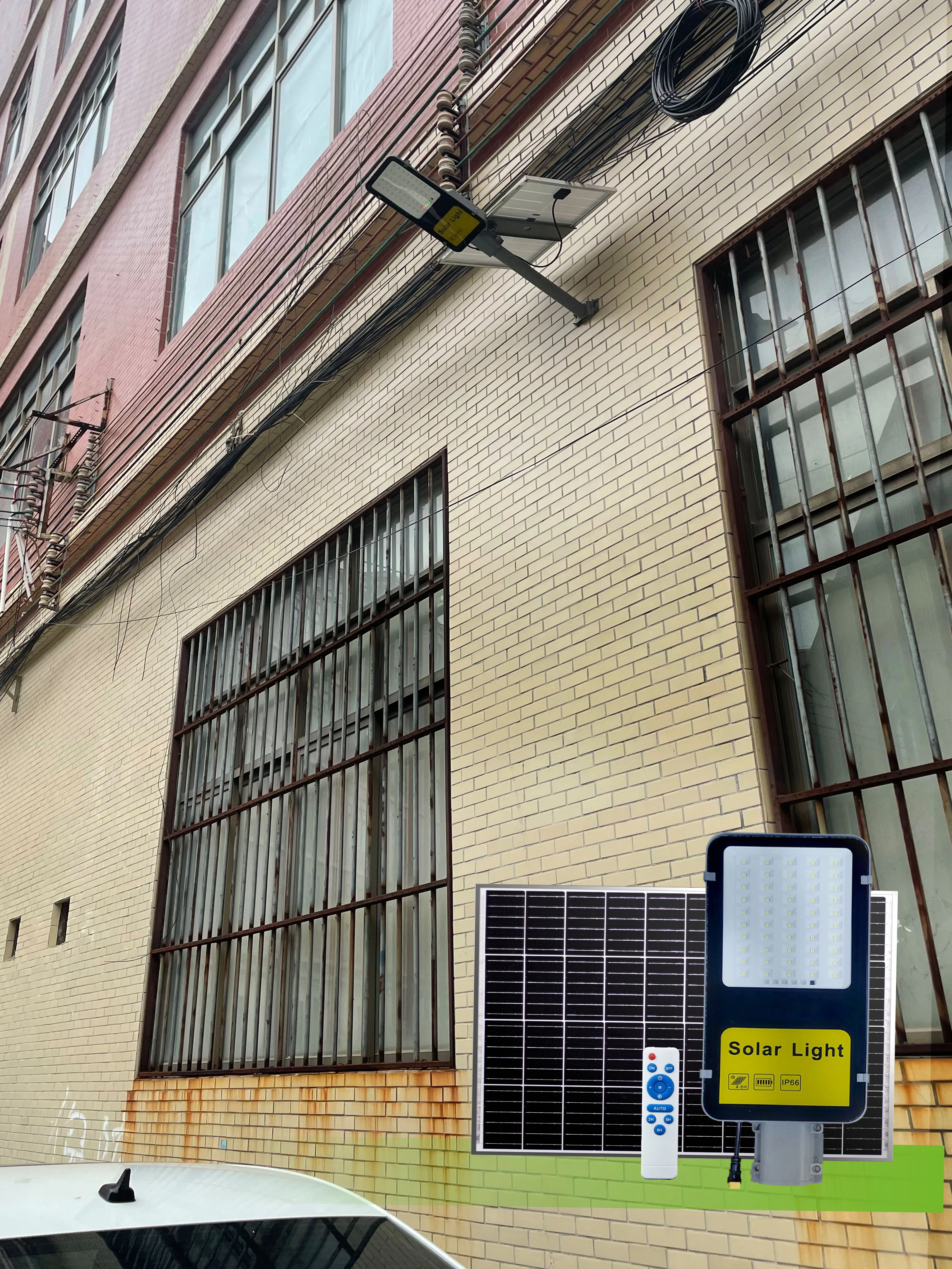

Farmhouse 6m Live Photo

400W<Wall install>

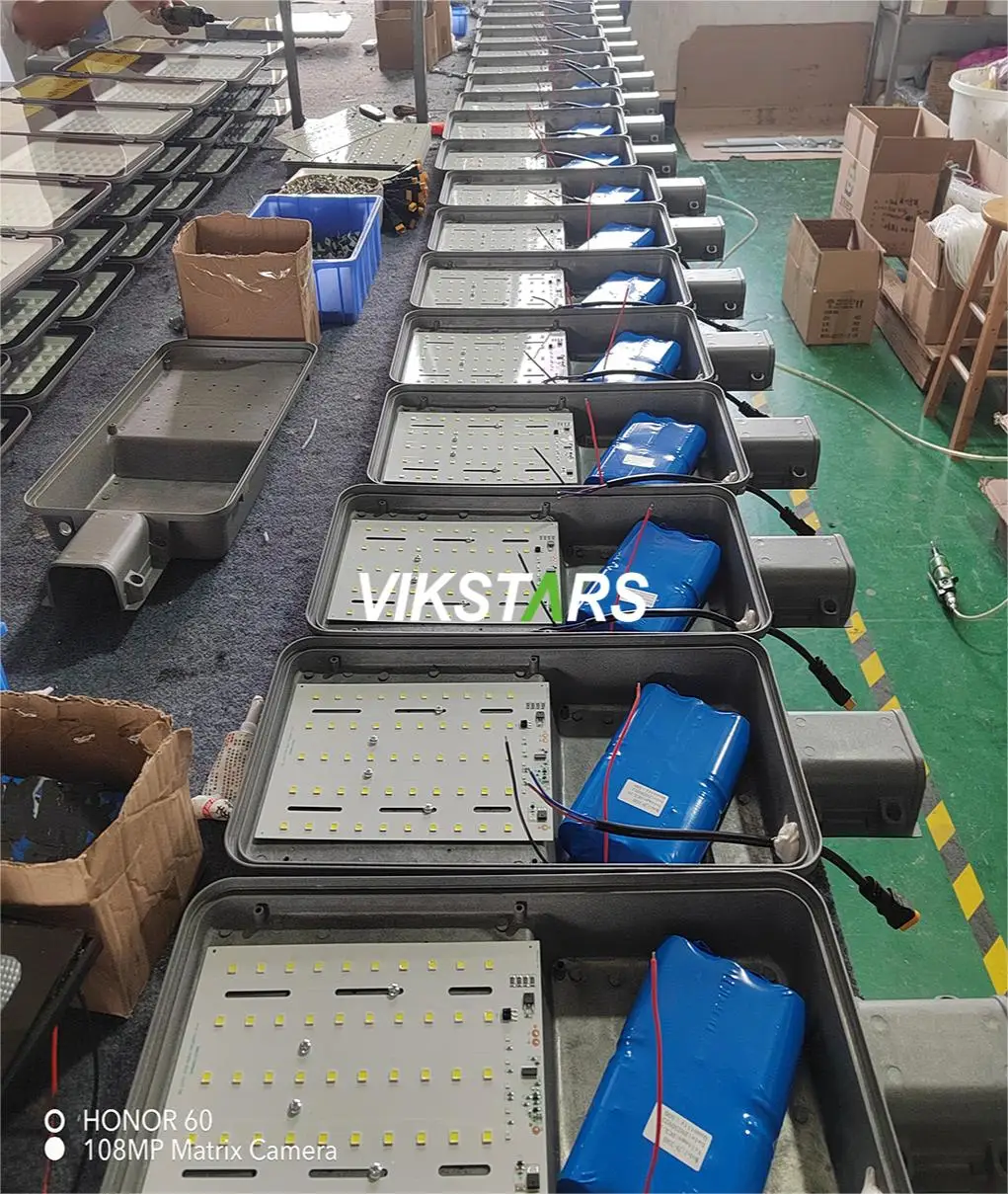

ORIGIN FACTORY
